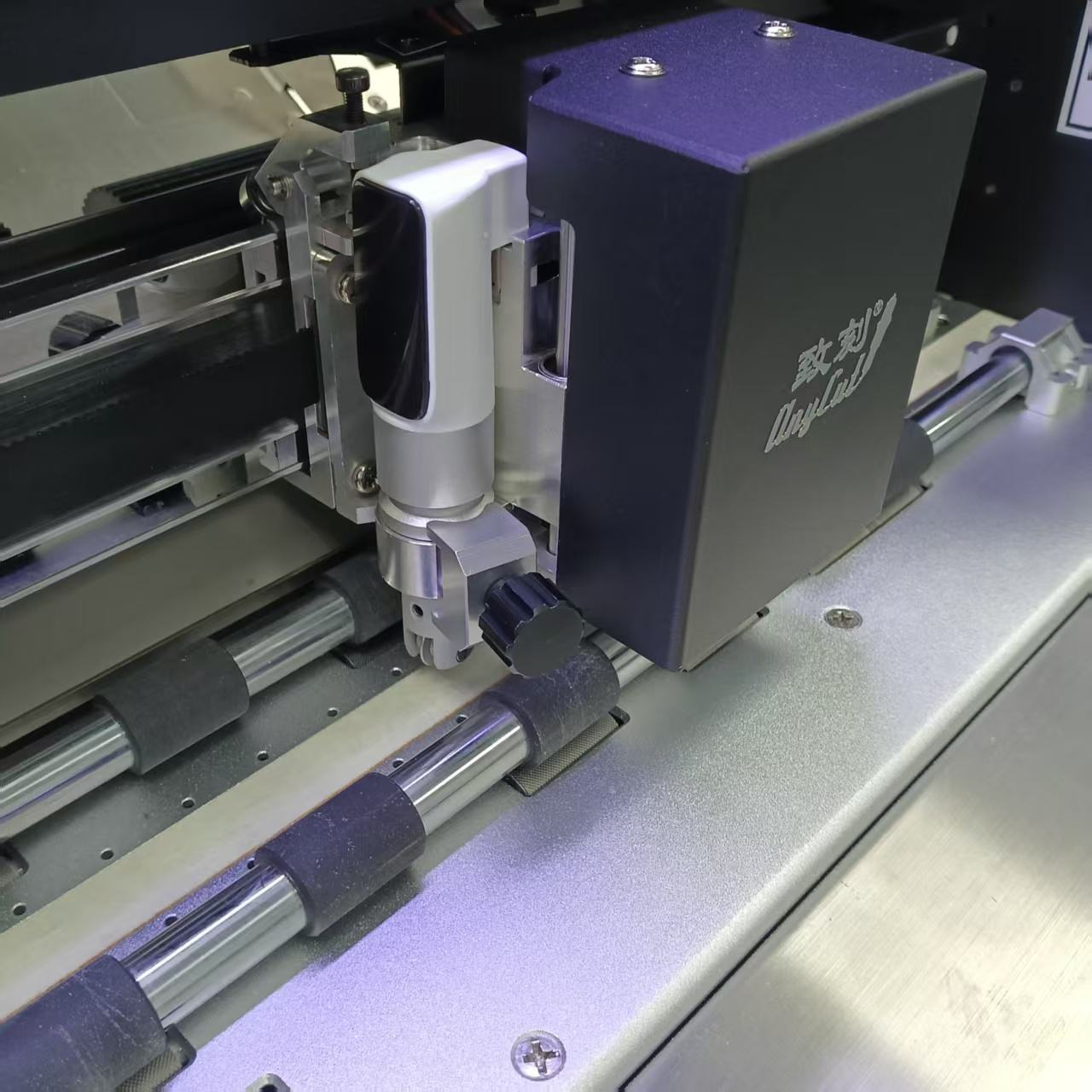

SVD370DW_RL A3 A4 A3+ Sticker Digital Auto Feeding Double Heads Wheel Indentation Adhesive Die Cutter Cutting Machine

Brand Name : Anycut

Model Number : ZKSVD370DW_RL

Certification : CE/FCC/RoHS

Place of Origin : shenzhen

MOQ : 1

Price : ￥$1145~1622/piece

Payment Terms : T/T,Western Union

Supply Ability : 1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days

Delivery Time : 20~30 work days

Packaging Details : L890mm*W580mm*H570mm

max cutting width : 340mm

Auto contour cut : Camera(automatically contour cutting)

Control panel : 4.3 inch touch screen

Positioning mode : Qr code/Dot/Right angle

Max material thickness : 600gsm

Max cutting speed : 1600mm/s

Max force : 3000g

Connect or interface : USB cable/Udisk/web cable/WIFI

Suitable cutting material : Self-adhesive sticker/coated paper/PVC

Support software : CDR/AI/PS/Contour software/Signmaster(optional）

motor : high speed servo motor

Contact Now

SVD370DW_RL A3 A4 A3+ Sticker Digital Auto Feeding Double Heads Wheel Indentation Adhesive Die Cutter Cutting Machine


The Anycut SVD370DW_RL is a compact, high-performance desktop cutter that combines ultra-fast cutting with professional wheel indentation, making it ideal for businesses and crafters looking to create precision packaging, labels, and promotional materials with crisp, clean creases.


1. High-efficiency processing:1600mm/s max cutting speed + 3000g max force, achieves full/half cutting in one pass for fast production.
2. Smart precision cutting:QR code/Dot/Right angle positioning + ±0.01mm cutting accuracy, auto contour cut via camera ensures no error for irregular stickers/cards.
3. Versatile compatibility:Works with self-adhesive sticker, coated paper, PVC, etc.; supports CDR/AI/PS and all Windows systems for flexible operation.
4. Convenient connectivity:WiFi, USB, U-disk and network cable options enable wireless/wired data transfer anytime, anywhere.


MODEL SVD370DW_RL
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 768mm*W 455mm*H 336mm
Gross/Net weight 63kgs/46kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
